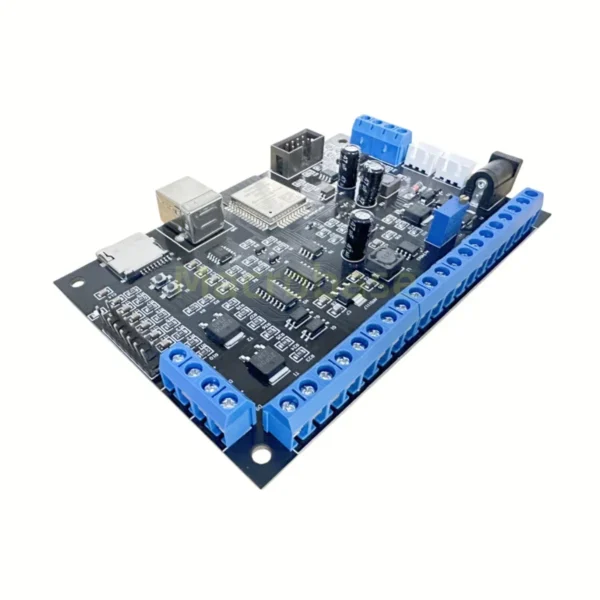

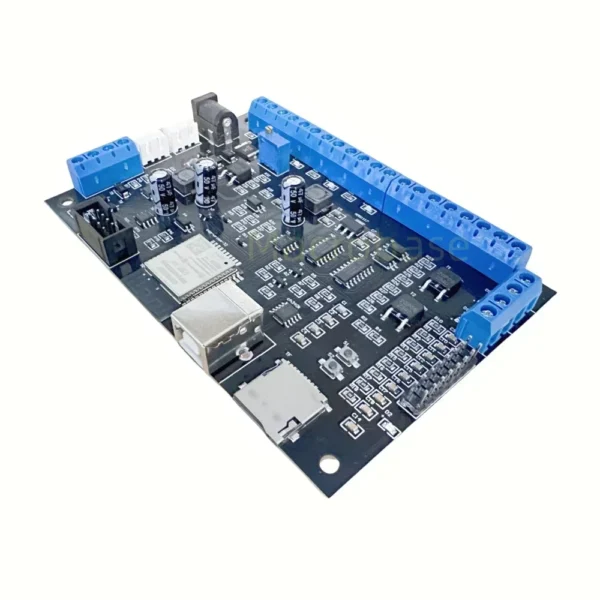

4 axis GRBL controller 32bit esp32 cnc shield control board upgrade plate for laser engraving milling marking cutting machine
In Stock
$15.00 – $19.00
In Stock
Description
Software
//github.com/Macrobase-tech/CNC-Software
Button Function
s1 is reset,s2 to download firmware.
s1 connects to EN,s2 connects to Boot.
PROBE Z-probe
X-LIM X limit,Always on
Y-LIM Y limit,Always on
Z-LIM Z limit,Always on
GND XYZ axis com,Z probe
VCC 5V Output
GND PWM ground
PWM-ADJ PWM adjustable
GND All drivers PUL-,EAN-,DIR-
X-STEP X-PUL+
X-EAN X-ENA+
X-DIR X-DIR+
Install ch340 USB Driver
Successfully install when CH340K comes up.
Fluidnc
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 18 × 20 × 7 cm |
| Hign-concerned Chemical | None |
| Model Number | 4 axis CNC controller |
| Item Type | Control Panel |
| Brand Name | MacroBase |
| Origin | Mainland China |
